  • CB160 & SB160

  • Choice of robust aluminium or chemically resistant ceramic tops.
  • Advanced safety features:
    - Flashing "hot" warning light to warn when top plate is too hot to touch.
    - Spillproof design which helps deflect spills away from the controls and the user.
    - Independent safety circuit to protect against overheating.
  • Microprocessor control for accurate temperature setting.

    General purpose, reliable hotplates with compact A4 footprint. These hotplates have microprocessor control of temperature allowing a calibrated scale to be printed around the control dial in C rather than an arbitrary 1 - 10 scale.

    The "Hot" warning light will flash whenever the plate temperature is above 50C and will operate even when the hotplate is turned off and connected to the mains.

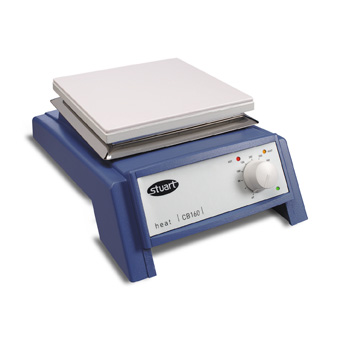

    Model CB160 has a glass ceramic top which has excellent chemical resistance and allows high plate temperatures for faster heating.

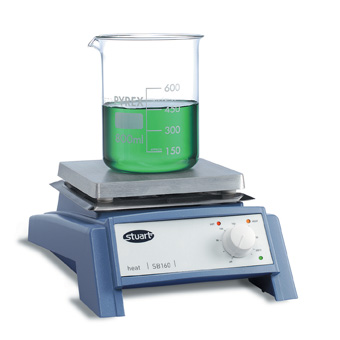

    Model SB160 has a robust aluminium/silicon alloy top plate which will withstand the knocks of everyday use.

  • Technical specification

                                    CB160 		        SB160
    Plate material 		        Glass ceramic 		Al/Si alloy
    Plate dimensions, mm 		160 x 160 		160 x 160
    Heater power, W 	        500 		        700
    Max. plate temp, C 		450 		        325
    Overall dimensions (w x d x h) 	190 x 300 x110 		190 x 300 x110
    Net weight, kg 			2.5 		        2.5
    Electricity supply 		230V, 50-60Hz 		230V, 50-60Hz

  • Ordering Information

    Model 	Description                        Cost
    CB160 	Hotplate, ceramic top, analogue    - 203.50
    SB160 	Hotplate, metal top, analogue      - 199.80
    * To request further information please Email
