Jepson Bolton's International Catalogue

Hotplates, large capacity

  • CB500 & SB500

  • Choice of top plate material, metal or ceramic
  • Large plate area ideal for heating multiple vessels
  • Accommodates up to 30 x 100ml beakers

    These large rectangular shaped hotplates are ideal for heating many smaller vessels simultaneously, e.g. in educational use where lots of students require their samples heated at the same time.

    An easy to use knob located on the front of the hotplate controls the top plate temperature. The robust side arms make the unit very easy to carry.

    The large surface area may stay hot for a long time after use, so for maximum safety, a bright red hot warning light will continue to flash until the hotplate is cool. There are two models to choose from:

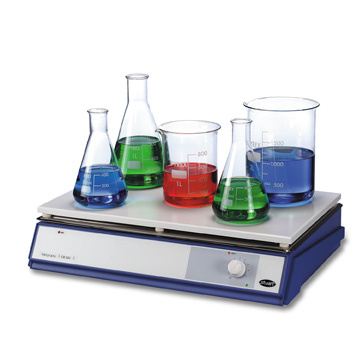

    Model CB500 has a glass ceramic top plate. It is easy to clean in the event of spillage and, due to unique thermal properties, can be heated to very high temperatures giving very fast heat up times.

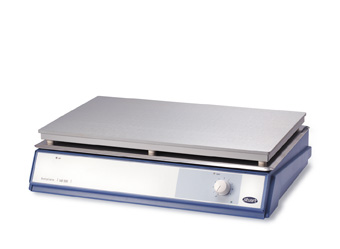

    Model SB500 has an aluminum / silicon alloy top plate. This material has very good conductive properties so will give a very even plate temperature. This means all samples, no matter where they are placed on the hotplate, will be subjected to the same conditions for excellent uniformity and reproducibility.

  • Technical specification

                                     CB500             SB500
    Plate material                   Glass ceramic     Al/Si alloy
    Plate dimensions, mm             300 x 500 	   300 x 500
    Heated area, mm                  250 x 450 	   300 x 500
    Heater power, W                  2250 		   1500
    Max. plate temp. C 		 375 		   300
    Overall dimensions, (w x d x h)  520 x 360 x 130   520 x 360 x 130
    Net weight, kg 			 12                12
    Electricity supply 		 230V, 50-60Hz     230V, 50-60Hz

  • Ordering Information

    Model 	Description                        Cost
    CB500 	Hotplate, ceramic top, analogue    - 527.25
    SB500 	Hotplate, metal top, analogue      - 508.75

    * To request further information please Email
