Jepson Bolton's International Catalogue

Incubators

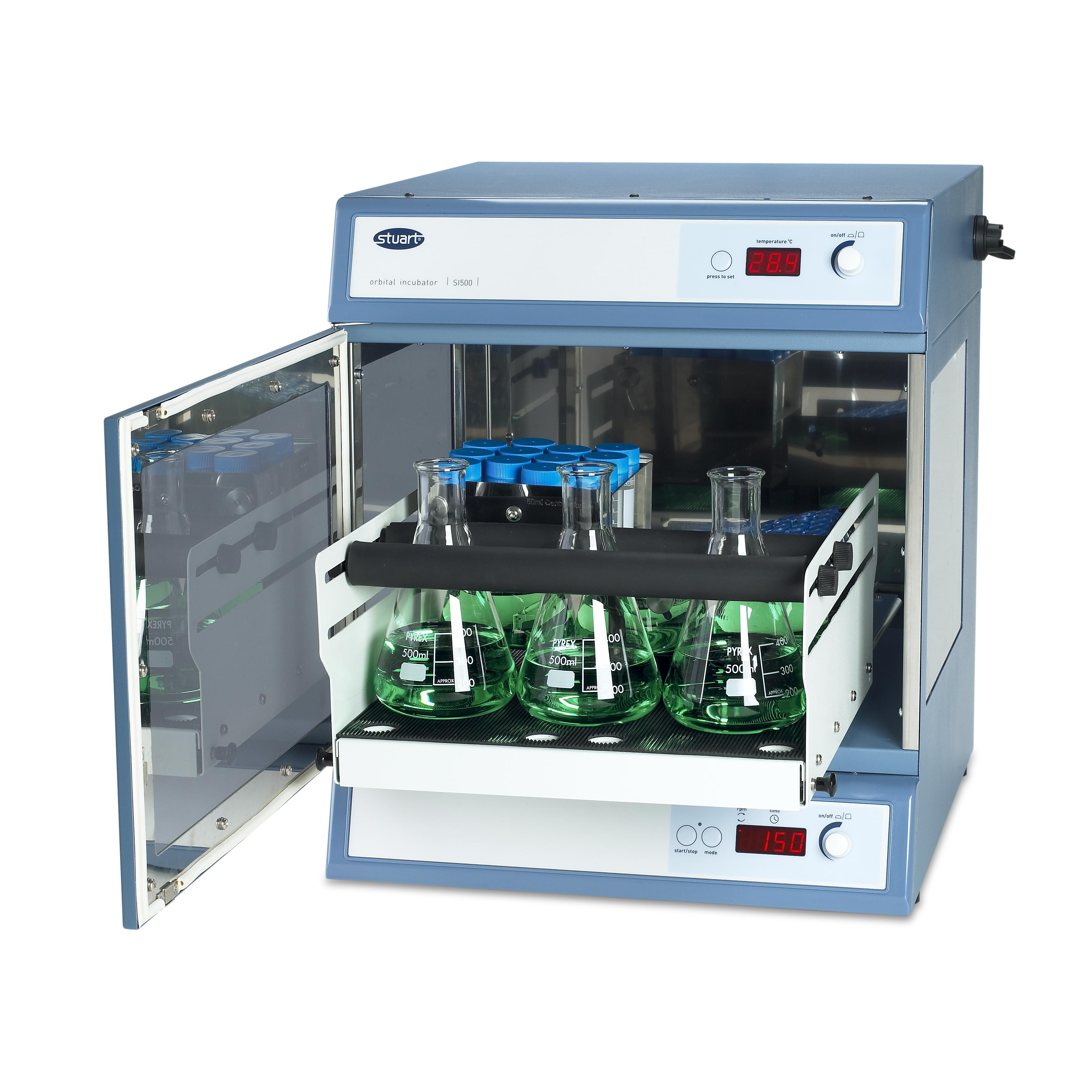

  • Incubator with orbital shaker, SI500

  • Combines incubator shaker
  • Digital display for temperature and speed
  • Integrated timer
  • Unique retractable platform for easy loading and unloading
  • Angle adjestable accessory tube racks, with patent pending
  • Magnalock coupling system available
  • Coms enabled for external temperature measurement

    This combines shaker and incubator is ideal for scientists doing cell culturing procedures, especially suspension culture applications. It is compact enough to be positioned on the laboratory bench.

    The shaker provides an orbital shaking motion, adjustable between 30 to 300rpm with a gentle start action. The shaking speed is microprocessor controlled and set via the digital LED control panel. The incubator also incorporates a versatile digital timer which can be set from 1 second to 9 days. After the timer has counted down the shaking action will stop and an alert with sound, as a safety feature the incubator will continue to run.

    The incubator features smoked acrylic windows in the door and to both sides to allow easy visibility of the samples. The incubator temperature is set via a separate bright LED display, encoder control ensures that the temperature can be quickly set between ambient tem-perature +5C and 60C. Forced air circulation ensures uni-form heating of the load.

    The SI500 platform has a versatile clamping system which secures most sizes and mixtures of flask up to 1 litre capacity. Typically, the platform will accommodate the following Erlenmeyer flasks: 12 x 250 ml or 9 x 500 ml or 6 x 1000 ml.

    The incubator features smoked acrylic windows in the door and to both sides to allow easy visibility of the samples.

    The unit features a retractable platform. Under normal use the platform is locked in place but whilst accessing your samples the platform can be drawn forward out of the chamber to allow easiest access to samples at the back of the incubator.

    The SI500 also features a USB connection and dedicated software to enable long term monitoring of the incubator temperature, i.e. over weekends.

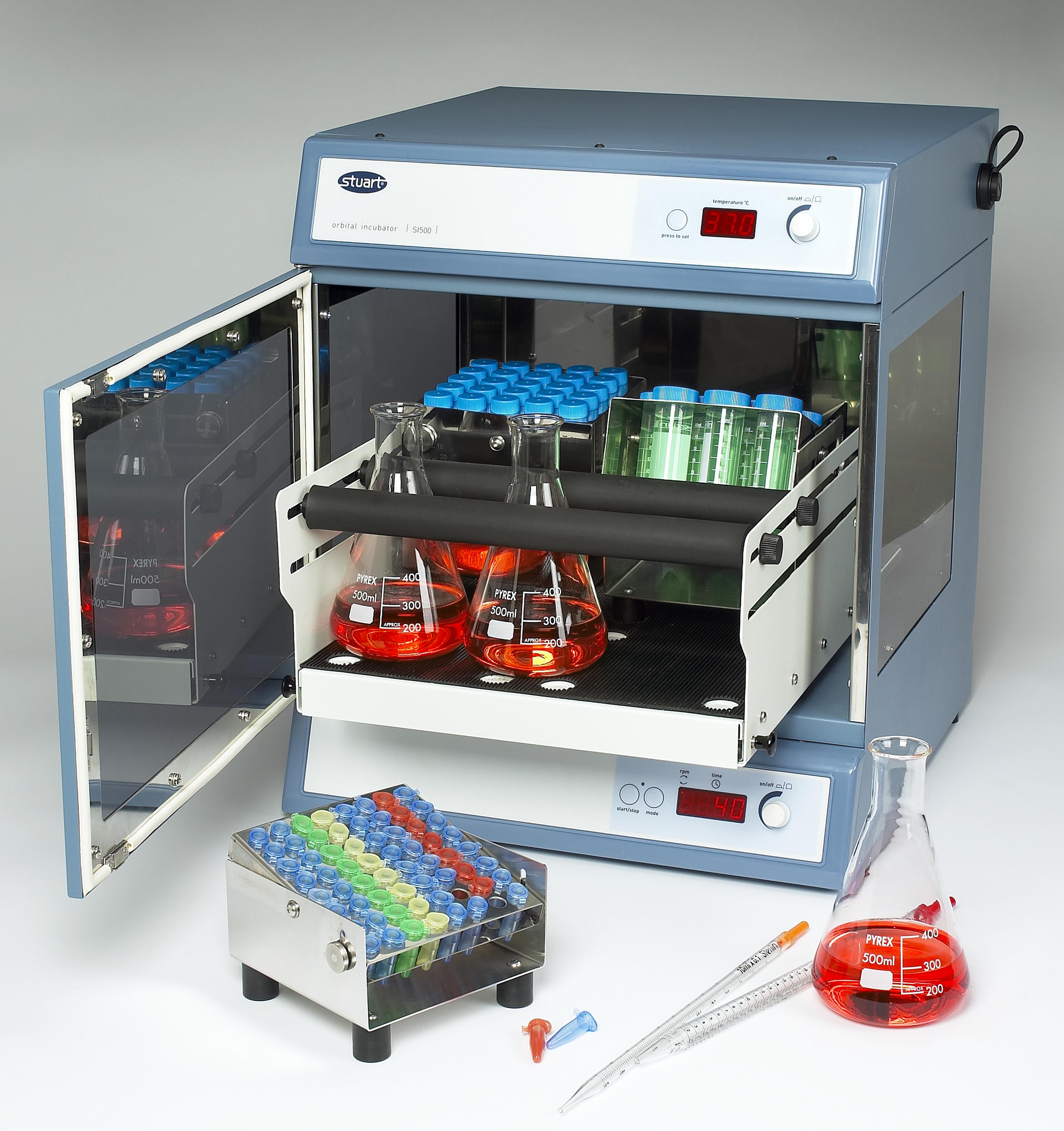

    A wide range of stainless steel accessory racks are available to hold 1.5ml, 15ml and 50ml sample tubes, the angle of the tubes can be adjusted up to 30. Assessory racks are held to the orbiting platform by a patent pending Magnalock system, allowing quick coupling and de-coupling without tools.


  • Technical Specification.


    Temperature range - Ambient + 5C to 60C
    Temperature display resolution - 0.1C
    Temperature precision - 0.5C
    Temperature fluctuation - 0.5C
    Temperature variation - <0.5C
    Speed range - 30 to 300 rpm
    Orbit diameter - 16mm
    Platform size - 335 x 335mm
    Internal dimensions (w x d x h)
    - 422 x 408 x 297mm
    Maxumum vessel height - 250mm
    Maximum load - 10kg
    Overall dimensions (w x d x h)
    - 450 x 474 x 522mm
    Net weight - 30kg
    Heater power - 250W
    Electrical supply - 230V, 50Hz, 300W

    Ordering information
    SI500 - Incubator, orbital shaker - 459.00
    SI500/1 - Tube rack, 1.5ml x 64 microtubes - 2529.00
    SI500/2 - Tube rack, 15ml x 25 centrifuge tubes - 118.80
    SI500/3 - Tube rack, 50ml x 12 centrifuge tubes - 118.80
    SI500/4 - Tube rack, 16 x 30ml Universal containers - 118.80


    * To request further information please Email enquiry@jepbol.com
