Jepson Bolton's International Catalogue

Stuart - Rotary Evaporators

  • Glassware Accessories and Spares

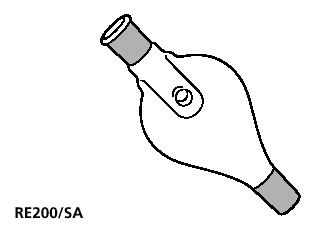

    Anti Splash Protector

  • Adapter to protect against liquid ingress into the condenser in the event of "bumping". Also useful with liquids which have a tendency to foam. 29/32 cone and socket.

  • Ordering Information
    Model
    Description
    Cost
    RE200/SA
    Anti-Splash Protector
    68.4



    Extension Adapter For Small Flasks

  • In order for small capacity evaporating flasks to reach the liquid level in the water bath this extension adapter should be fitted between the vapour tube and the flask. 29/32 cone and socket.
  • For use with flasks of 50ml or 100ml capacity

  • Ordering Information table test
    Model
    Description
    Cost
    RE100/EA
    Extension Adapter
    9.50



    Evaporating (Florentine) flasks

  • Florentine type flasks for use with all glassware sets. 29/32 socket.



  • Ordering Information
    Model
    Description
    Cost
    FD50/4RE
    Evaporating flask 50ml
    FD100/4RE
    Evaporating flask 100ml
    FD250/4RE
    Evaporating flask 250ml
    FD500/4RE
    Evaporating flask 500ml
    FD400/4REP
    Evaporating flask 500ml Plastic Coated
    FD1L/4RE
    Evaporating flask 1000ml
    FD1L/4REP
    Evaporating flask 1000ml Plastic Coated
    FD2L/4RE
    Evaporating flask 2000ml
    FD2L/4REP
    Evaporating flask 2000ml Plastic Coated

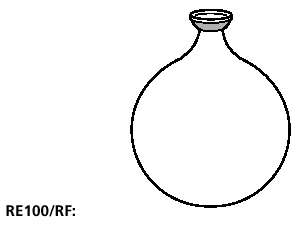

    Receiving Flasks

  • Receiving flasks for use with all glassware sets, S35 spherical socket.



  • Ordering Information
    Model
    Description
    Cost
    RE100/RF/50
    Receiving Flask 50ml
    31.35
    RE100/RF/100
    Receiving Flask 100ml
    30.40
    RE100/RF/250
    Receiving Flask 250ml
    44.65
    RE100/RF/500
    Receiving Flask 500ml
    29.45
    RE100/RF/500P
    Receiving Flask 500ml Plastic Coating
    43.70
    RE100/RF/1L
    Receiving Flask 1000ml
    26.60
    RE100/RF/1LP
    Receiving Flask 1000ml Plastic Coating
    48.45

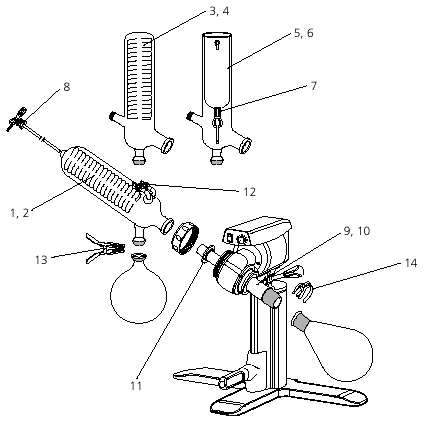

    Replacement Parts for Glassware Sets



    Part
    Model
    Description
    Cost
    1
    RE100/CO
    Diagonal condenser, glass set 00
    218.50
    2
    RE100/COP
    Diagonal condenser, plastic coated, glass set 00P
    261.25
    3
    RE200/VC
    Vertical condenser, glass set 01
    175.50
    4
    RE200/VCP
    Vertical condenser, plastic coated, glass set 01P
    318.25
    5
    RE200/CF
    Cold finger condenser, glass set 02
    319.20
    6
    RE200/CFP
    Cold finger, condenser, plastic coated, glass set 02P
    359.10
    7
    RE200/CFD
    Drain for cold finger condenser, glass set 02 & 02P
    24.70
    8
    RE100/VR
    Feed tube/vacuum release, all glass sets
    49.40
    9
    RE100/VT
    Vapour tube diagonal condensers, glass set 00 and 00P
    77.90
    10
    RE100/VT/CF
    Vapour tube for vertical coil and cold finger condenser
    Glass sets, 01, 01P, 02, 02P
    77.90
    11
    RE100/VS
    Vacuum seal, all glass sets.
    35.15
    12
    4510/04
    PTFE screwthread connectors, all glass sets, (pack of 10)
    13
    JC35
    Spherical joint clip for receiving flask, all glass sets
    14
    KCM29
    Metal joint clip for evaporating flask, all glass sets

    * To request further information please Email enquiry@jepbol.com
