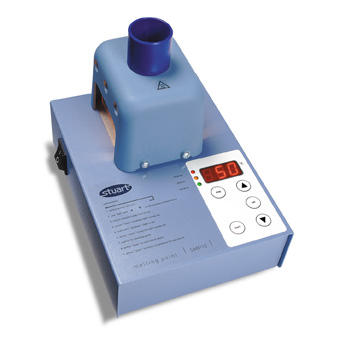

Melting Point Apparatus - Digital

  • SMP10

  • Digital selection & display of temperature
  • High accuracy
  • Easy to operate with plateau facility
  • Ideal for educational use
  • Supplied with calibration certificate

    The SMP10 has been designed with safety and ease of operation in mind making it ideal for use in education. The temperature is selected, measured and displayed digitally making it accurate and negating the need for a thermometer.

    Two samples can be tested simultaneously. They are viewed via a magnifying lens with clear observation aided by built in illumination. Extendible back feet allow the unit to be operated at the optimum viewing angle. Full access to the block aids cleaning. The simple to follow instructions are printed directly on the instrument in most European languages for ease of use.

    To operate simply select a plateau temperature via the three digit display and press 'start'. The unit quickly heats up and remains at the selected plateau temperature until the user is ready to start the test. Insert the sample tubes and press 'start'. The unit then heats slowly so that the melt can be observed. When the sample is seen to melt, note the temperature on the display. Press 'stop' to end heating and cool the block.

    Supplied complete with calibration certificate showing individual serial number for traceability.


  • Technical Specification

    Number of samples      - 2

    Temperature range - Ambient to 300C
    Temperature accuracy - 1.0C at 20C/ 2.5C at 300C
    Display - Three digit LED
    Display resolution - 1C
    Sensor - Platinum resistance PT100
    Ramp rates - 20C per minute to plateau/2C per minute to melt
    Dimensions (w x d x h) - 160 x 220 x 170mm
    Net weight - 1.8 Kg
    Electrical supply - 230V, 50Hz, 75W

  • Ordering Information

    Model      Description                                            Cost
    SMP10 - Melting point apparatus, complete with pack of 100 melting point tubes, closed at one end - 471.75
    SMP10/1 - Glass melting point tubes, closed at one end, pack of 100 - 9.25

    * To request further information please Email enquiry@jepbol.com
