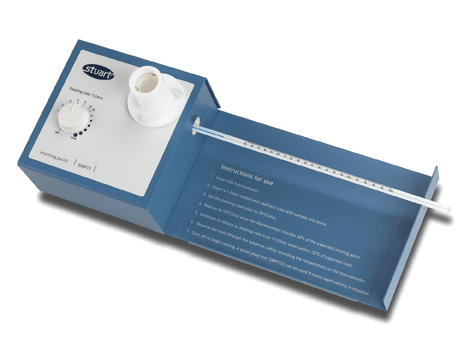

Melting Point Apparatus - Analogue

SMP11

With new safety features and easy to use, the SMP11 is ideal for use in education.

Supplied with a safe, spirit filled mercury free thermometer, the low toxic blue spirit will not pose a health hazard in the event of a breakage. Easy to follow instructions are printed directly on to the apparatus and are available in most European languages.

With a manually adjustable heating rate, the SMP11 will rapidly heat samples up to 20°C per minute to the melt temperature and up to the maximum temperature of 250°C. Accurate readings to within 1°C of the melt temperature can be achieved by using a slower heating rate of between 1 and 10°C per minute.

Up to three samples can be viewed and tested at any one time. Samples are illuminated by a bright white LED and viewed via a magnifying lens. The magnifying lens can be detached for cleaning using the simple to follow instructions printed on to the instrument.

Technical Specification

No. of samples         - Up to 3

Temperature range      - Ambient to 250°C

Heating rate           - 1 to 10°C/min

Dimensions (w x d x h) - 370 x 140 x 110 mm

Net weight             - 1.7kg

Electrical supply      - 230V, 50Hz, 50W

Ordering Information

Model  	 Description                                                       Cost

SMP11   - Melting point Apparatus, complete with thermometer
          and pack of 100 melting point tubes (open both ends)              - £272.88

SMP11/1 - Spare thermometer, spirit filled, 0°C to 250°C                    - £19.43

SMP1/2  - Cooling plug (brass) for rapidly reducing heating
          block temperature after use                                       - £12.49

Melting point tubes

Made from soda glass, these tubes are easy to seal in a Bunsen flame and break into two. Supplied in robust tube holder, pack of 100 tubes. Tube overall length is 100mm Tube diameter = 1.9mm, inner diameter = 1.3mm and wall thickness = 0.3mm.

Ordering information

Model 	Tube type             Cost

SMP1/4  - Open both ends      - £6.94

SMP2/1  - Sealed both ends    - £14.80

SMP10/1 - Sealed at one end   - £9.25
