Jepson Bolton's International Catalogue

Stuart - Rockers

  • Rockers, mini, SSM3 & SSM4

  • Small space saving design - ideal for personal use
  • Gentle rocking action
  • Choice of two models: - 3D gyratory action SSM3 - See-saw wave action SSM4
  • Digital speed control and built-in timer
  • Optional tier system available to increase capacity

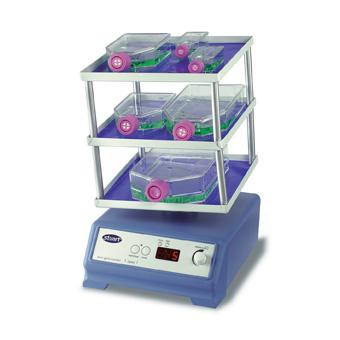

    These compact rockers are ideal where gentle mixing is required, either on the bench or in incubators. Choice of two models:

    Model SSM3 provides a 3D gyratory motion, ideal for low foaming agitation, DNA extractions, staining and de-staining procedures etc. The angle of tilt can be moved to any position by hand to optimize mixing of vessels.

    Model SSM4 has a see-saw rocking action that creates a wave motion within vessels such as culture flasks, Petri dishes etc. Digital selection of both speed and time facilitates accurate and reproducible conditions. Both parameters are controlled via an easy to use encoder control knob and displayed on the bright LED display.

    Both models are supplied with a non-slip mat which holds flat based vessels securely in place during mixing. An accessory tier system can be fitted in seconds, without the need for tools, tripling the available space for samples. Each tier is securely held in place by magnets.

  • Technical Specification

    table test

    SSM3
    SSM4
    Rocking action
    3D gyratory
    See-saw wave
    Platform dimensions (W x L)
    235x235 mm
    235x235 mm
    Speed range
    5 to 70 rpm
    5 to 70 rpm
    Angle of tilt
    3 to 12°
    7°
    Angle adjustable
    Yes by hand
    No
    Maximum load
    3kg
    3kg
    Overall dimensions, mm
    240x300x165
    240x300x150
    Tier height, mm
    125/tier

    Operational temp. range
    +4 to +40°C
    +4 to +40°C
    Maximum permissible humidity
    80%
    80%
    Net weight
    5kg
    5kg
    Electrical supply
    230V, 50Hz, 50W
    230V, 50Hz, 50W

  • Ordering Information

    Model
    Description
    Cost
    SSM3
    Rocker, gyratory, mini
    £585.20
    SSM4
    Rocker, see-saw, mini
    £463.60
    SSM3/1
    Tier system, (2 platforms plus 8 bar)
    (fits both models)
    £101.18


    * To request further information please Email enquiry@jepbol.com
