Jepson Bolton's International Catalogue

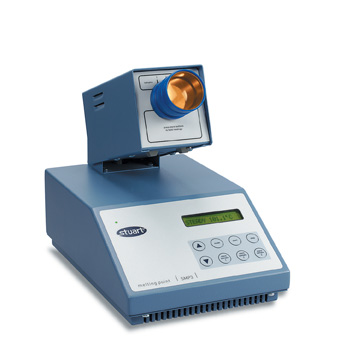

Melting Point Apparatus - Advanced

  • SMP3

    NOTE : This model has now been updated to the SMP30 model, shown here.

  • Maximum temperature 360C
  • Programmable heating rates
  • Melt temperature memory
  • Automatic cooling and user friendly display
  • Supplied with calibration certificate

    Designed for fast and accurate measurement of melting points. The heating block accommodates up to three samples and incorporates a platinum resistance sensor for responsive temperature control.

    A membrane keypad allows easy setting of the desired start temperature and heating ramp rates (fully adjustable from 0.5C to 10C per minute) in 0.1C increments. The user friendly backlit alphanumeric LCD display advises both the temperature and the specific stage of operation. Language is switchable between English, French, German, Italian and Spanish.

    Clear observation of the samples and melt process is aided by a powerful magnifying lens and high intensity illumination. When measurements of melt are being made, the temperatures may be stored in the instrument's memory by pressing the storage buttons. The values can then be recalled at a convenient time. Once the heating cycle is completed, an integral air pump quickly cools the heating block so that the next series of tests can be commenced promptly.

    Supplied complete with calibration certificate showing individual serial number for traceability.


  • Technical Specification

    No of samples              - 3

    Temperature range - Ambient to 360C
    Temperature resolution - 0.1C
    Temperature accuracy - 0.5C at 20C/1.5C at 360C
    Display - LCD
    Sensor Platinum resistance - PT100
    Ramp rates - 0.5C - 10C per min in 0.1C increments
    Temperature memories - 8 per tube
    Dimensions (w x d x h) - 180 x 260 x 300mm
    Net weight - 3.2kg
    Electrical supply - 230V, 50Hz, 60W

  • Ordering Information

    Model     Description                                             Cost
    SMP3 - Melting point apparatus, complete with pack of 100 melting point tubes, closed at both ends - 832.50
    SMP2/1 - Glass melting point tubes, closed at both ends, pack of 100 - 14.80

    * To request further information please Email enquiry@jepbol.com
